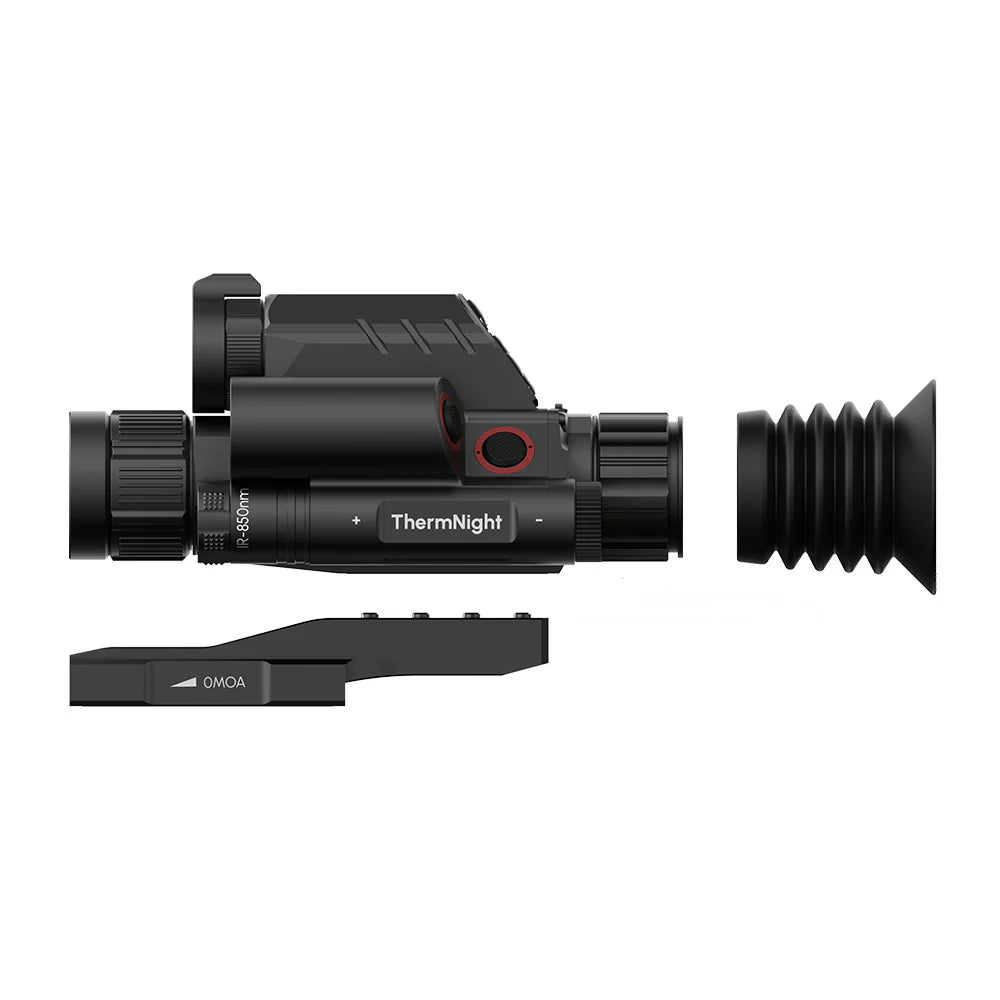

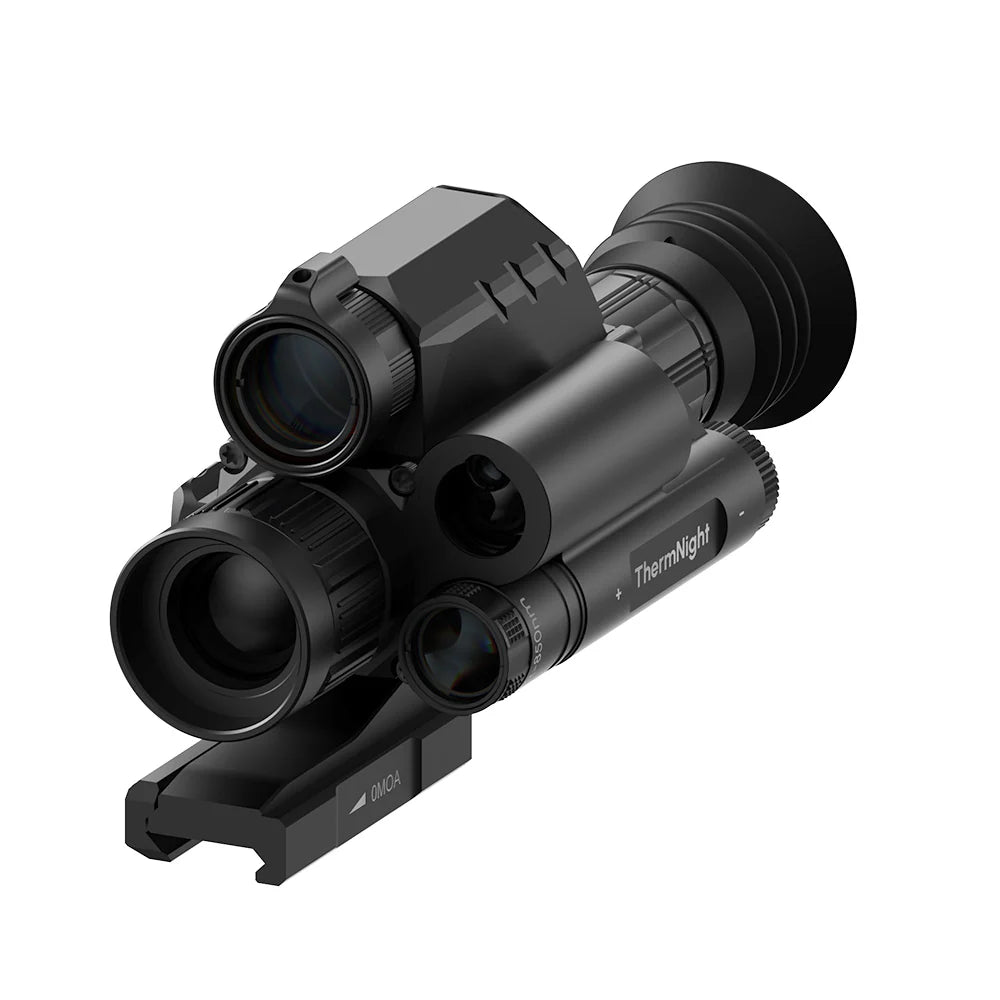

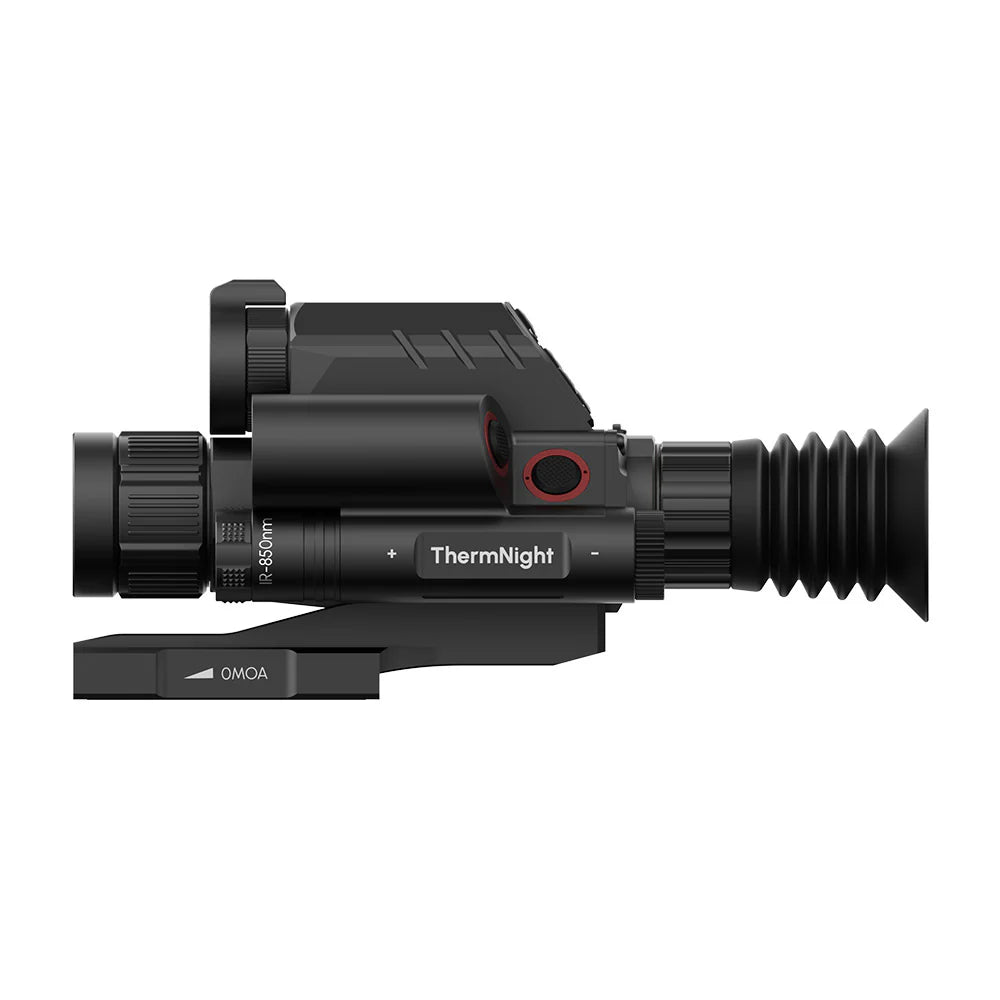

TNC225R - ThermNight Thermal & Night Vision Multispectral Scope with Laser Rangefinder and Ballistic Calculator
Description
See it All You Will Love What You See
The ThermNight Multispectral series of scopes is the culmination of technology to create the perfect aiming solution. It can be used in all weather & lighting conditions. The thermal and night vision combination allows for faster detection of targets and provides high-quality digital image for identification.
Thermal & Night Vision
Combination
DNT
Ballistic Engine
Day & Night
in All Conditions
Ultra Compact
& Lightweight
Thermal imaging offers superior nighttime detection ranges, enhanced by digital night vision to precisely identify targets with accuracy and reliability
ThermNight TNC225R comes with a highly sensitive 12um pixel detector and an advanced algorithm enhanced 256x192 resolution combined with NETD ≤ 25mK. This allows you to detect heat signatures at further distances and positive lD your target with digital NV before engaging.
Night Vision & ThermaI Design Ensures a Safe and Memorable Hunting Experience
The Picture-In-Picture (PIP) feature integrates thermal detection and night vision identification into a single image. enabling confident engagement of intended targets with the Multi-Spectral ThermNight TNC225R.
Clear Vision for Close-Range Hunting
Equipped with the state-of-the-art Sony STARVIS 2 sensor for exceptional low-light clarity, the ThermNight TNC225R combines thermal imaging with digital day and night vision. The combined vision allows clear target identification at around 150 yards, while night vision with IR alone can extend visibility up to approximately 450 yards. This makes it a versatile all-in-one solution for small holdings, pest control, and close-range hunting.
Experience the thrill of the hunt with a compact and lightweight design
With a deliberate emphasis on compact design and lightweight construction, the ThermNight TNC225R is engineered to thrive in all environments, measuring just 7 inches long and weighing a mere 22.8oz.
Dual Aiming System Calibrated in One
The ThermNight TNC225R's "one shot zeroing" function is available in both thermal imaging and day/night vision channel. With only one shot using the day/night vision, you can easily switch to the thermal and adjust the reticle to be zeroed to the same point of impact (POl) as your day/night vision, saving you time so you can focus on your hunt.
Multispectral Mode Display for Better Detection and Identification
With a focus on enhancing detection and identification processes, the ThermNight TNC225R offers unparalleled convenience: toggle effortlessly between display modes (Day/Night Vision, Thermal, or a hybrid) via Picture-in-Picture (PIP) at the touch of a button. Accelerate target recognition capabilities with the advanced Multi-Spectral ThermNiaht TNC225R.
Detachable IR Illuminator
The removable IR Illuminator allows you to switch between 850nm or 940nm.
(940nm IR illuminator can be purchased separately.)
Other Features
Built in 32Gb Storage
Detachable Eye Cup
Designed With Metal Threads
Digital Zoom
Wheel
Digital Gyroscope For
Accurate Inclination And
Cant Angle
Up to 5 hour Battery
Life
Aiming Methods:
Dial-In Or Holdover
Package Contents
TNC225R
×1
PMS
×1
Eye Cup
×1
Flip Up Cover
×1
18650 Flat Top Battery
×2
Charger
×1
USB Cable
×2
User Manual
×1
Lens Cleaning Cloth
×1
-TNC225R SPECIFICATIONS-
Physical Specifications
Net Weight
Dimensions
Storage
22.8oz
6.7*3.3*3.1 Inches
Internal Storage, 32GB
LRF Maximum Measuring Range
WIFI/APP
Bluetooth
5-1100yards
Yes
Yes
Ingress Protection
Operating Temperature
Shock Resistance
IP67
-4~122F
800Gs
Display Specifications
Type
Display Resolution
Frame Rate
Micro-OLED
1024*768 pixels
50FPS
Battery Power Supply
Battery Type
Operating Time
External Power Supply
18650 Battery(flat top)
5h
5V - Type C USB
THERMAL CHANNEL - Sensor Specifications
Resolution
Field of View(FOV)
Frame Rate
256x192px
7.03°x 5.28°
50FPS
Pixel Size
NETD
Focal Length of Objective Lens
12x12um
≤25mk@25℃
25mm
Base Magnification
Digital Zoom
Image Sensor
3X
3X,6X,9X,12X
Uncooled Infrared Image Sensor
VISIBLE LIGHT CHANNEL - Sensor Specifications
Resolution
Sensor Frame Rate
Video Record Resolution
1920*1080 pixels
60FPS
1024*768 pixels
VISIBLE LIGHT CHANNEL - Optical Specifications
Objective Lens Focal Length
Field of View(FOV)
Eye-Relief
52mm
6.13°x 3.45°
45mm/1.8 Inches
Base Magnification
Digital Zoom
Diopter Adjustment
5X
5X,7.5X,10X,12X,15X,17.5X,20X
±5D
IR Wavelength
Infrared Power
850/940nm
Class 3R Eye Safe
