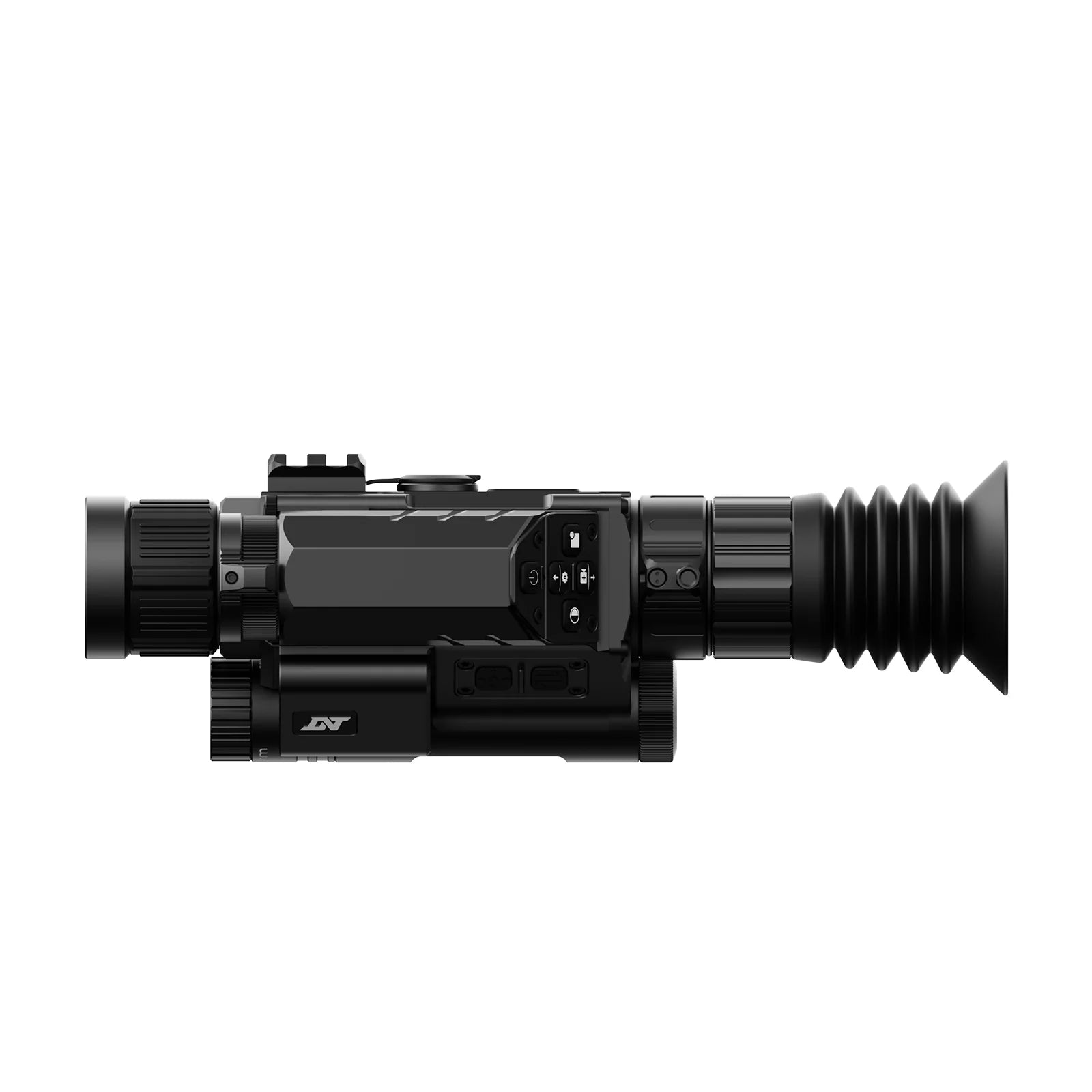

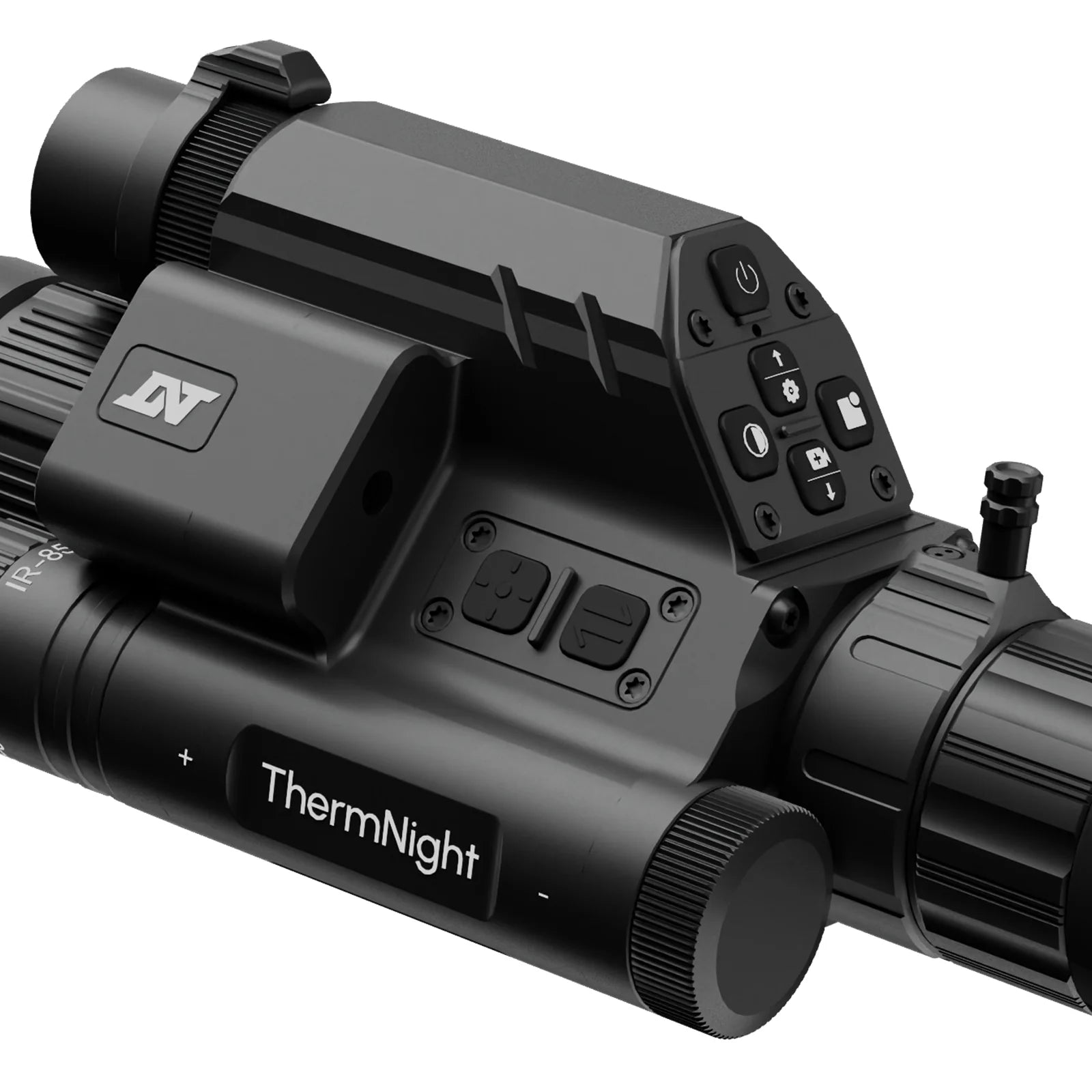

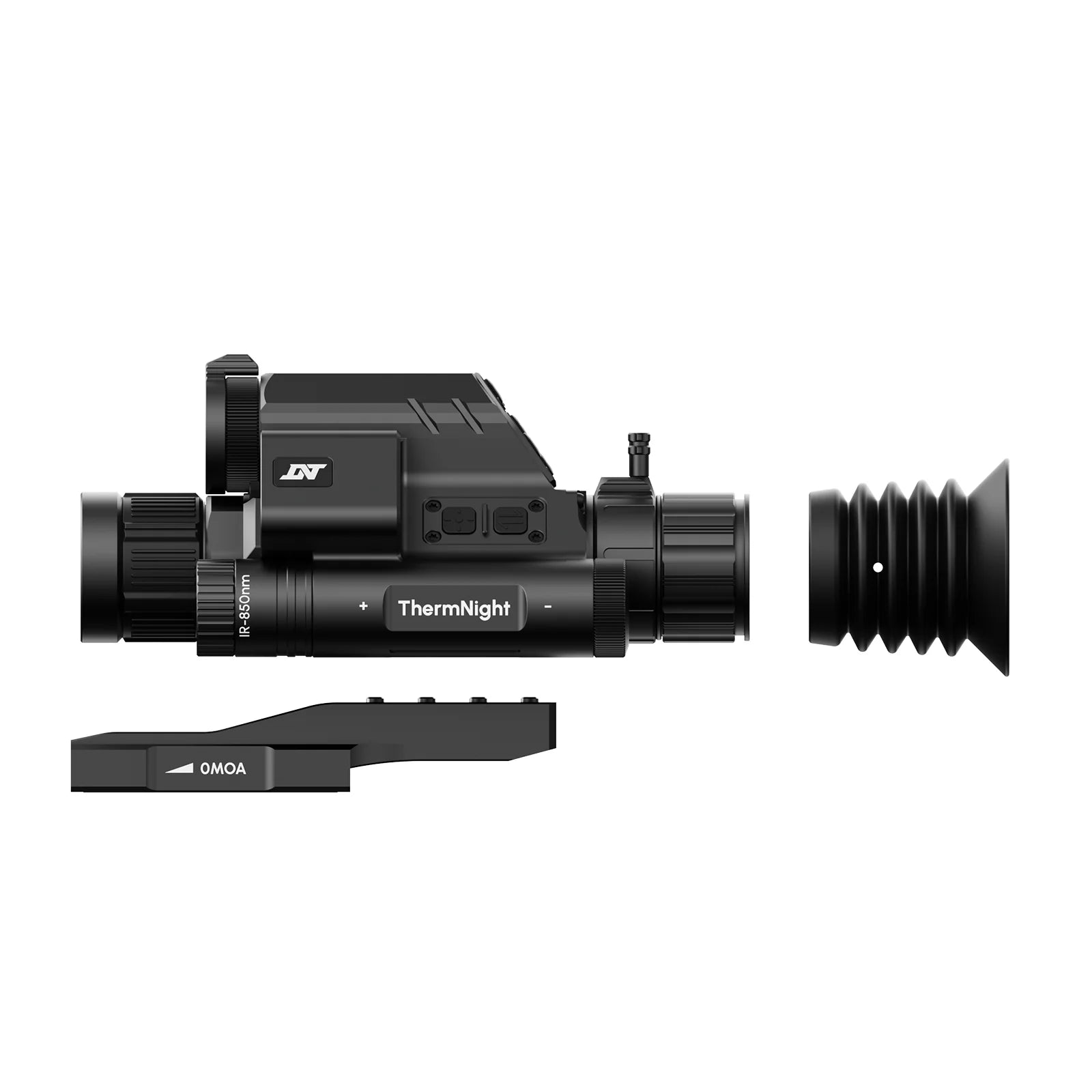

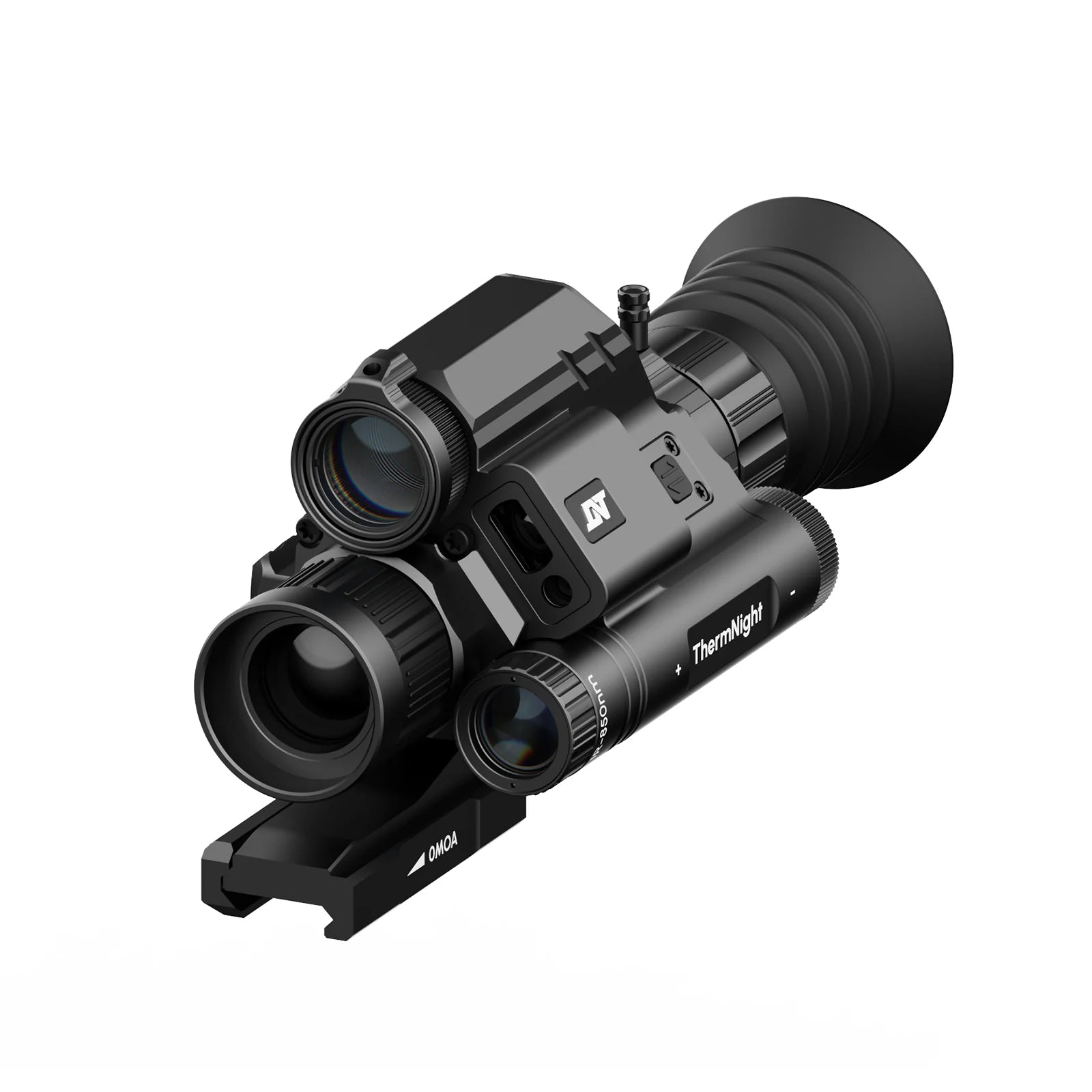

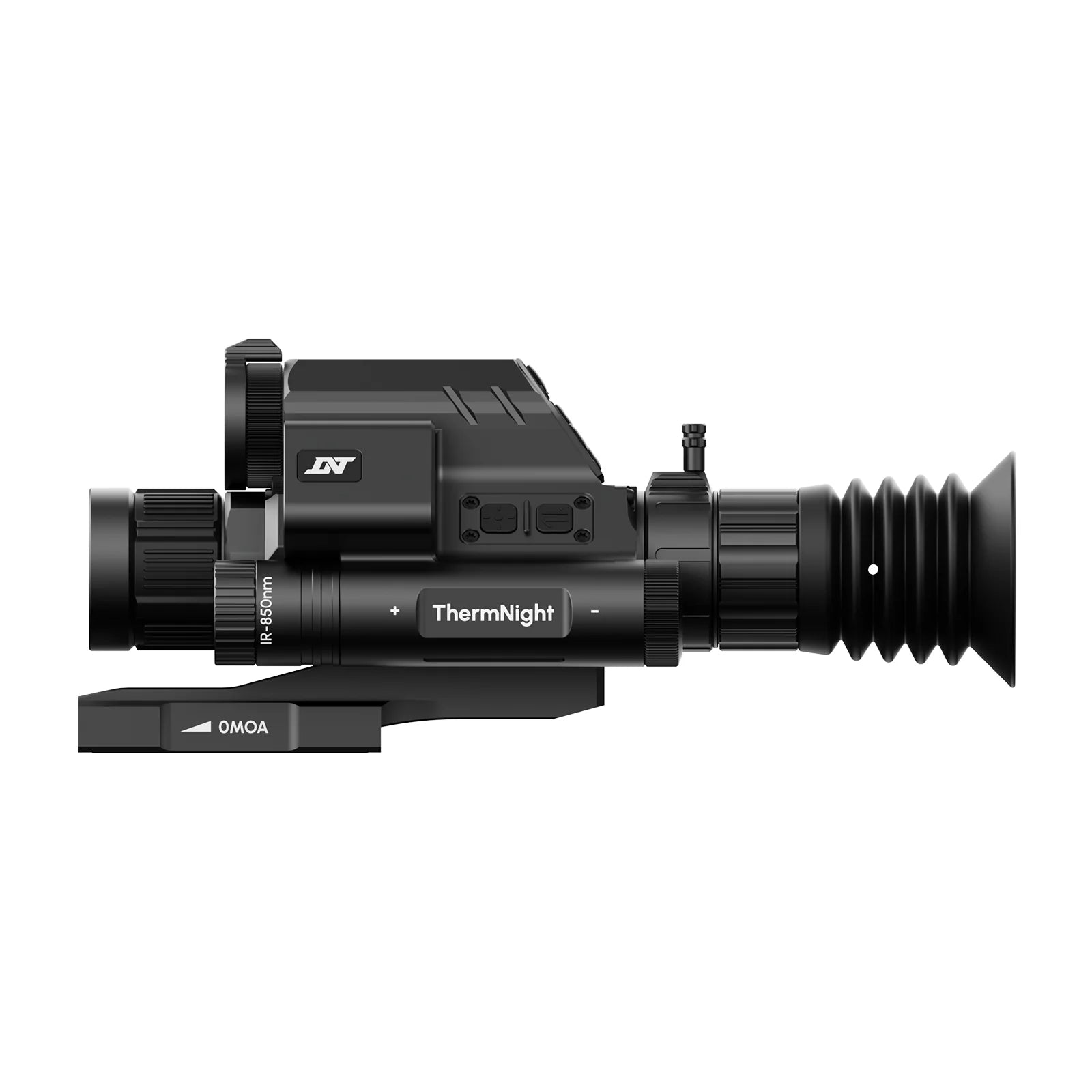

TNC635R - ThermNight Thermal & Night Vision Multispectral Scope with Laser Rangefinder and Ballistic Calculator
Description
See it All You Will Love What You See
The ThermNight Multispectral series of scopes is the culmination of technology to create the perfect aiming solution. It can be used in all weather & lighting conditions. The thermal and night vision combination allows for faster detection of targets and provides high-quality digital image for identification.
Thermal & Night Vision
Combination
DNT
Ballistic Engine
Day & Night
in All Conditions
Ultra Compact
& Lightweight
High-End Thermal Sensor, Enhanced Visibility
The TNC335R features a 384 x 288 thermal sensor, while the TNC635R offers a 640 x 512 thermal sensor, delivering superior clarity with a wider field of view (FOV) for easier target detection. Both models use uncooled VOx microbolometers with a 12um pixel pitch, ≤18mk@25°C sensitivity, and a 50Hz refresh rate for optimal performance in the field.
TNC635R
Be The Ultimate Predator And See In The Dark With The Sony Starvis 2 Sensor
Starvis2 SONY Digital Sensor
Enhanced Algorithm
1920x1080 Micro-OLED
Utilization of SONY's latest CMOS Starvis2 Technology, as well as ED glass lenses, cutting edge AI imaging algorithms and a world-leading 60Hz 1920x1080 Micro-OLED display ensures the DNT ThermNight to be perfect for day or night.
Night Vision And Thermal At The Touch of a Button
Switching between thermal and digital channels is as easy as the press of a button, conveniently positioned on the side of the scope. You can also enable Picture-in-Picture so you can see both channels at the same time, saving you time to focus on your target.
Long-Range Precision for Every Hunt
The ThermNight TNC635R is a top-tier multispectral scope built for full-range hunting. Its 640 thermal sensor delivers detailed imaging, enabling confident detection and engagement beyond 400 yards. Suitable for hunting predators such as foxes and coyotes, as well as larger game like hogs and deer, it performs reliably across even the most challenging terrain. Delivering an ultimate, all-in-one solution, it gives hunters unmatched clarity and control in the field.
More features
Thermal ZOOM Lock
One-shot Zeroing
Detachable IR llluminator
Up to 5 hrs Battery Life
Built-in 64Gb Storage
Reticles: 8 Styles and 5 Colors
Precise aiming even in the Picture-In-Picture mode
Wireless Updates
Package Contents
TNC635R
×1
PMS
×1
PM20L
×1
Eye Cup
×1
Flip Up Cover
×1
21700 Flat Top Battery
×2
Charger
×1
USB Cable
×2
User Manual
×1
Lens Cleaning Cloth
×1
Scope Sunshade
×1
-TNC635R SPECIFICATIONS-
Physical Specifications
Net Weight
Dimensions
Storage
724g/25.6oz
232x82x78mm/9.2x3.2x3.0 inches
Bulit-in memory,64GB
LRF Maximum Measuring Range
WIFI/APP
Shock Resistance
5~1100M/5~1200yds
Yes(DNT)
800Gs
Ingress Protection
Operating Temperature
IP67
-20~50°C/-4°F~122°F
Display Specifications
Type
Display Resolution
Frame Rate
Micro-OLED
1920x1080 pixels
60Hz
Battery Power Supply
Battery Type
Operating Time
External Power Supply
21700 Battery(flat top)
5.5h
5V - Type C USB
THERMAL CHANNEL - Sensor Specifications
Resolution
Field of View(FOV)
Frame Rate
640x512 pixels
12.52° x 10.02°
50FPS
Base Magnification
Digital Zoom
Focal Length of Objective Lens
1.5x
1.5x, 2.25x,3x,3.75x,4.5x,5.25x, 6x
35mm
Pixel Size
NETD
Image Sensor
12x12um
≤18mk@25℃
Uncooled lnfrared lmage Sensor
VISIBLE LIGHT CHANNEL - Sensor Specifications
Resolution
Sensor Frame Rate
Video Record Resolution
1920*1080 pixels
60Hz
1800x1080 pixels
VISIBLE LIGHT CHANNEL - Optical Specifications
Field of View(FOV)
Eye-Relief
IR Rating
5.31° x 2.99°
65mm
Class 3R Eye Safe
Base Magnification
Digital Zoom
Diopter Adjustment
5X
5X,7.5X,10X,12X,15X,17.5X,20X
±3D
IR Wavelength
850/940nm
